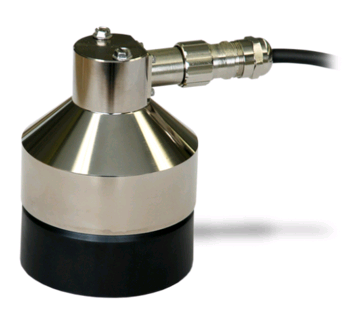

Ultrasonic sensor
Sensor for measuring distances without contact. Data analysis with Smartyplanet
The SPS50A ultrasonic sensor is the ideal solution for measuring the distance from the sensor to a target without contact.
Its most notable application is measuring depths of snow or water.
It is a robust acoustic sensor.
The data it collects is accurate and reliable. Thanks to its full compatibility with the Smartyplanet web platform, this data is easily recorded and analyzed.
Category: Snow, Snow, Smart Weather, Smarty Snow
Description
Applications
Technical characteristics
The SPS50A ultrasonic sensor is the ideal solution for measuring the distance from the sensor to a target without contact.
Its most notable application is measuring depths of snow or water.
It is a robust acoustic sensor that can be installed under any type of weather conditions.
Because the speed of sound varies with temperature, this sensor incorporates an algorithm for the readings that compensates for the effect that temperature may cause.
The data it collects is accurate and reliable. Thanks to its full compatibility with the Smartyplanet web platform, this data is easily recorded and analyzed.
- Avalanche prevention
- Hydrological control
- Robust design
- Non-contact measurement.
- Compatible con Smartyplanet
Especificaciones Técnicas
| PARÁMETRO | ESPECIFICACIONES |
|---|---|
| Tiempo medida | <1s |
| Opciones salida | SDI-12, RS232, RS485 |
| Velocidades transmisión | 1200 a 38400 bps |
| Alimentación | 9-18 VDC |
| Rango de medida | 0,5 a 10m |
| Aceptación haz | 30º |
| Resolución | 0,25mm |
| Precisión | ±1 cm o 0,4% de la distancia al objetivo |
| Temperatura funcionamiento | -45 a +50ºC |
| Conformidad | Normativa CE |
| Longitud | 10,1cm |
| Diámetro | 7,5cm |
| Peso cable | 250g para un cable de 4,57m |
| Peso | 375g sin cable 1kg |
