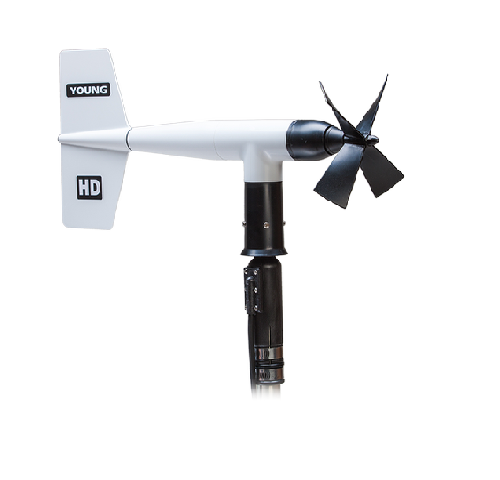

The SP05108-L anemometer is the ideal solution for measuring wind speed and direction parameters.

This device is specifically for applications where sensor access is limited and conditions are difficult.

It is a rigid thermoplastic instrument with stainless steel and aluminum accessories.

The bearings of this anemometer are made of ceramic and the bearings of steel, making the anemometer suitable for marine applications.

The anemometer's design is based on a four-bladed propeller. The propeller's rotation produces a sinusoidal alternating current wave with a frequency proportional to the wind speed.

This signal is induced in a coil by a six-pole magnet mounted on the propeller shaft. The coil is located in the non-rotating central section, eliminating the need for slip rings and brushes.

In contrast, wind direction is detected by the orientation of the sensor body, which is connected to an internal positioning system.

The data logger applies an excitation voltage to the potentiometer. The output is an analog voltage signal proportional to the wind's inlet angle.

The anemometer is fully compatible with the Smartyplanet web platform so the data can be analyzed instantly.
