Temperature sensor
Contact measurements and data analysis with Smartyplanet

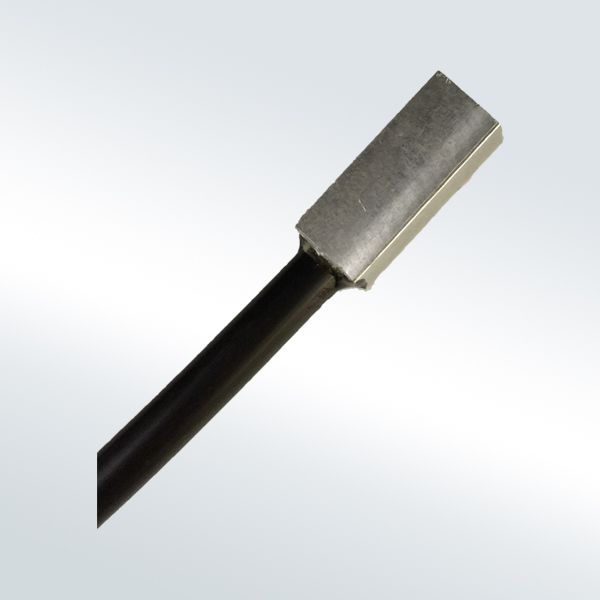

The SPR220-01 temperature sensor is the ideal solution for knowing the temperature of any body or fluid with high precision.
The temperature it detects is converted into voltage, making it possible to analyze the recorded data with the Smartyplanet web platform.
It is a compact and accurate temperature sensor.
It has applications in meteorology, power generation, and contact temperature measurement, among others.
It is corrosion resistant and easy to install.
Category: Solar radiation, Solar radiation, Smarty Meteo, Smarty Agro, Traffic
Description
Applications
Technical characteristics
The SPR220-01 temperature sensor is the ideal solution for knowing the temperature of any body or fluid in contact.
The data recorded by this sensor is accurate and reliable.
The temperature data it records is converted into voltage. This data is then transmitted to and analyzed by the Smartyplanet web platform.
It has several applications in fields such as meteorology or power generation.
The instrument is compact and stable. The temperature sensor is corrosion-resistant, so it can be installed under any type of conditions.
Its installation is simple.
It can transmit over long distances and has good anti-interference capabilities.
- Weather stations
- Contact temperature measurement
- Solar and wind power generation
- Ports
- Mobile weather monitoring vehicles
- Corrosion resistance
- High precision
- Good stability
- Possibility of multiple output signals
- Easy installation
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Rango | -50 a +100℃, -20 a +50℃ |
| Tensión alimentación | 5VDC, 12-24VDC |
| Exactitud | ±0.5℃ |
| Salida | 4-20mA 0-5V RS485(MODBUS) |
| Capacidad carga | ≤250Ω ≥1K |
| Clase de protección | IP65 |
| Temperatura funcionamiento | Sonda: -50℃ a +120℃ Módulo conversión: -40℃ a +85℃ |
| Peso | Sonda: 125g |
| Condiciones almacenamiento | 10℃-60℃@20%-90%RH |
