Ultrasonic Weather Station
Compact decision-making support station
This device is the ideal solution for weather monitoring applications, especially designed for agriculture.
Its size is compact and it is resistant to all kinds of adverse conditions.
It stands out because it has built-in GPS and an electronic compass.
All data measured by the station's sensors is directly recorded on the Smartyplanet web platform, which is fully compatible.
Category: Compact weather station, Smarty Meteo
Description
Applications
Technical characteristics

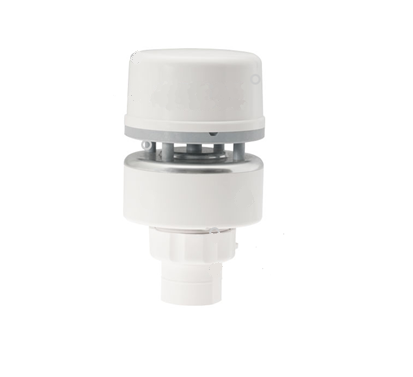

The SP150WX is the ideal solution for fixed, deployable, and mobile ground-based weather monitoring applications. Rugged, compact, IPX4 or
The SP150WX model is an ideal solution for stationary, deployable, and mobile applications for on-the-ground weather monitoring.
The station has a compact size and is resistant to all types of weather conditions.
The SP150WX model has built-in GPS and an electronic compass.
The SP150WX model calculates theoretical wind speed and direction based on apparent wind speed, vehicle/vessel speed, and vehicle/vessel heading. Theoretical wind speed and direction are important for numerous applications and are often mission-critical. The weather station has been integrated into a mobile agriculture OEM platform and has enabled several mobile agriculture aftermarket solution providers to enhance their solutions.
The weather station is fully compatible with the Smartyplanet web platform, so the recorded data can be easily analyzed.
- Weather monitoring
- Agriculture
- Fires
- Aviation
- Apparent and theoretical wind speed and direction.
- Barometric pressure.
- Air and wind cooling temperature.
- Relative humidity.
- Punto de rocío e índice de calor calcularados.
- GPS position, ground speed, ground heading.
- 2-axis solid-state compass.
- 3-axis accelerometer.
- IPX4 with RH option.
- IPX6 without the RH option.
- Output: via a cable.
Especificaciones del Sensor
| Parámetro | Especificación |
|---|---|
| Longitud de onda | 300-3000nm |
| Alimentación | 5V, 12-24VDC |
| Rango | 0-1500W/m² |
| Salida | 0-20mV, 0-5V, 4-20mA, RS485 |
| No linealidad | <±3% |
| Tiempo de respuesta | ≤5s |
| Estabilidad | ±2%/año |
| Corrección coseno | ≤±10% (ángulo elevación solar=10°) |
| Efecto temperatura | ±0,08%/ºC |
| Temperatura de funcionamiento | -40℃ a +85℃ |
| Peso | Sensor: 420g, Módulo de transmisión: 340g |
| Material | Aleación de aluminio |
| Clase de protección | IP65 |
| Condiciones de almacenamiento | 10℃-60℃ @ 20%-90% RH |
