Precipitation radar sensor
Measuring precipitation type and rate. Data analysis with Smartyplanet

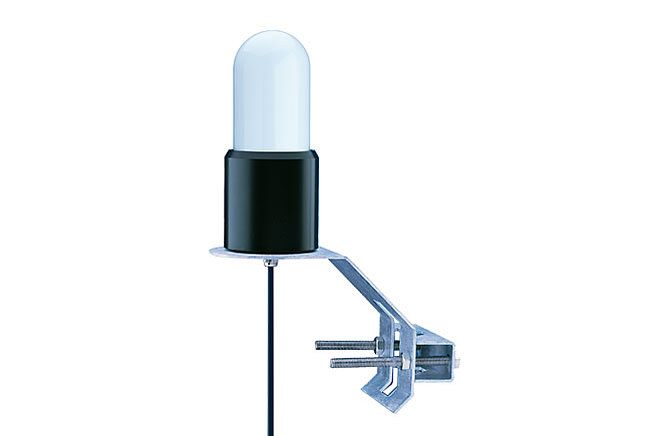

The SPR2S radar precipitation sensor is the ideal solution for measuring the type and intensity of precipitation at a specific location.
It is specifically designed for meteorological monitoring, whether for avalanche prevention, traffic or airport monitoring, or for hydrological monitoring.
Its installation is simple and thanks to its robust construction it can withstand all types of weather conditions.
This sensor is capable of capturing the type of precipitation and the speed at which it falls through a 24GHz Doppler radar system.
The data collected by the sensor is recorded and analyzed by the Smartyplanet web platform, as it is fully compatible.
Category: Rain, Rain, Snow, Smarty Meteo, Smarty Agro, Smarty River, Smarty Snow, Traffic, Liquid Precipitation
Description
Applications
Technical characteristics
The SPR2S radar precipitation sensor is the ideal solution for measuring the type and intensity of precipitation at a specific location.
It is specifically designed for meteorological monitoring, whether for avalanche prevention, traffic or airport monitoring, or for hydrological monitoring.
Its robust construction makes it resistant to hostile conditions.
This sensor is capable of detecting the type of precipitation by the size of the drops. It also detects the speed at which they fall using a 24 GHz Doppler radar system.
In this way, the data recorded by the sensor can be analyzed by the Smartyplanet web platform since it is fully compatible.
The precipitation radar sensor has a resolution of 0.01 mm.
The maintenance required by this sensor is extremely low and its installation is simple.
- Avalanche prevention
- Weather control for traffic
- Airport weather control
- Weather stations
- Hydrological stations
- Very fast response time
- Distinction of precipitation type
- Maintenance-free
- No moving parts
- Suitable for solar-powered weather stations
- Resolution for rain intensity of 0.01mm
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| GENERALES | |
| Resolución precipitación líquida | 0,01 a 1 mm/m2 |
| Tensión alimentación | 4 a 32 VDC |
| Consumo de potencia sin calefactor | 2 VA |
| Energía calefactor | 30 VA |
| Temperatura funcionamiento | -40 a +60ºC |
| Humedad funcionamiento | 0 a 100% |
| Clase de protección | IP66 |
| Interfaz | RS485, protocolo UMB, interfaz pulso y frecuencia |
| Cable | 10m |
| Tipo de precipitación | Lluvia, nieve, aguanieve, lluvia helada, granizo |
| Rango medida granizo | 5,1 a 30mm |
| PRECIPITACIÓN | |
| Principio | Radar Doppler |
| Reproducibilidad | >90% |
| Rango medida tamaño de gotas | 0,3 a 5mm |
