Water level sensor (15m)
Water control and data analysis with Smartyplanet

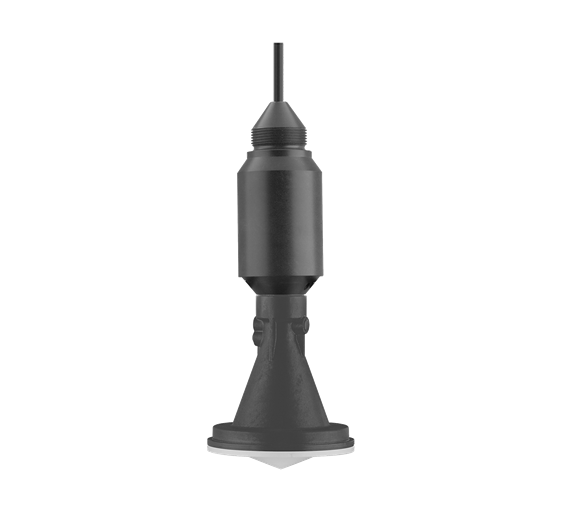

The SPW61 water level sensor is the ideal solution for all applications in the field of water and wastewater.
It is specifically designed for level measurement in water treatment plants, pump stations, and rainwater overflow tanks. It is also suitable for flow measurement in open channels and level control.
The measurements are performed without contact and the data collected is accurate in all types of environmental conditions.
The water level sensor is fully compatible with the Smartyplanet web platform. This allows data to be recorded and analyzed instantly.
The sensor requires no maintenance and is easy to install.
Category: Water Level, Water Level, Smarty River, Smarty Water
Description
Applications
Technical characteristics
The SPW61 water level sensor is the ideal solution for all applications in the field of water and wastewater.
It is specifically designed for level measurement in water treatment plants, pump stations, and rainwater overflow tanks. It is also suitable for flow measurement in open channels and level control.
The measurements are taken without contact.
The antenna system emits short microwave pulses onto the product being measured. These pulses are reflected by the product's surface and received back by the antenna system. The time from transmission to reception of the signal is proportional to the level.
The data it collects is accurate in all types of environmental conditions.
The water level sensor is fully compatible with the Smartyplanet web platform. This allows data to be recorded and analyzed instantly.
The sensor requires no maintenance and is easy to install.
- Hydrological control
- Robust design
- PBT Construction
- Resistant to harsh conditions
- High precision and reliability
- Maintenance-free
- Easy installation
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Material | PBT |
| Clase de protección | IP68 |
| Rango medida | 15m |
| Error de medición | ±2 mm |
| Conexión a proceso | Rosca G1½, estribo de montaje, bridas sueltas a partir de DN 80, 3″ |
| Presión de proceso | -1 a +2 bar/-100 a +200 kPa |
| Temperatura de proceso | -40 a +80 °C |
| Temperatura ambiente, de almacenaje y de transporte | -40 a +80 °C |
| Tensión de trabajo | 9,6 a 36 VDC |
