Barometric pressure sensor
Wall-mounted barometer and data analysis with Smartyplanet

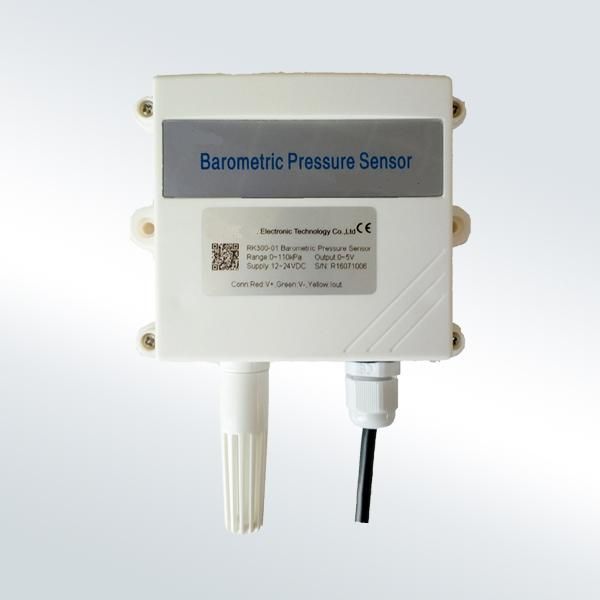

The SPR300-01 barometric pressure sensor is a small sensor that is placed on walls.
It has applications in fields such as meteorology, agriculture, environmental control, etc.
The data it collects is accurate and reliable.
This data is transmitted and analyzed through the Smartyplanet web platform, as it is fully compatible.
Optionally, it can have an integrated LCD screen that allows you to view the data on site.
Category: Smarty Weather, Temperature, Humidity and Pressure
Description
Applications
Technical characteristics
The SPR300-01 barometric pressure sensor is a small, compact sensor that is installed on walls.
The data it records is highly accurate and reliable. This makes it an ideal solution for fields such as meteorology and agriculture, among others.
This sensor is a robust and lightweight instrument. It is corrosion-resistant, so it can be installed in harsh environments.
It is possible to integrate an LCD screen that displays the data collected on site.
Its compatibility with the Smartyplanet web platform and its long-distance transmission capability allow the recorded data to be analyzed instantly.
- Environmental monitoring
- Wind resource assessment
- Agriculture
- Greenhouses
- Cattle raising
- Lightweight construction
- High sensitivity
- Optional LCD screen
- Internal self-compensation
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES TÉCNICAS |
|---|---|
| Rango | 0-110kPa, 80-110Kpa, 60-110KPa (opcional) |
| Resolución | 0.01kPa |
| Exactitud | ±0.2%FS |
| Temperatura deriva | ≤0.02%FS/℃ |
| Tiempo respuesta | <1s |
| Alimentación | 12-24VDC |
| Señal salida | RS485, 4-20mA, 0-5V, 0-10V (opcional) |
| Temperatura funcionamiento | -40℃ a +75℃ |
| Almacenamiento | 10-60℃@20%-90%RH |
| Dimensiones | 117 x 135 mm |
| Peso | 155g |
| Clase de protección | IP55 |
