Solar radiation-resistant casing
Solar radiation-resistant housing for sensor protection

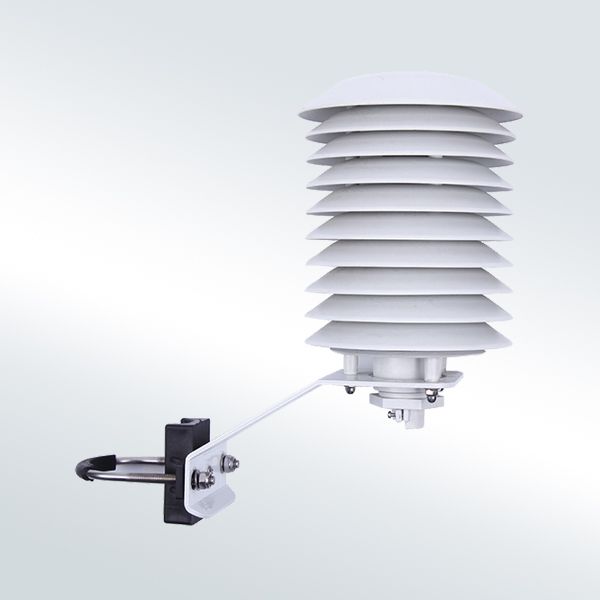

The SP-RK95-02 solar radiation shield protects temperature, humidity and pressure sensors from solar radiation and precipitation.
It is based on the combination of geometry, material and ventilation suitable for total protection of the sensors.
It reflects sunlight from any direction, preventing direct sunlight and glare. It also protects the sensors from conditions such as strong winds, rain, or snow.
Category: Smarty Weather, Temperature, Humidity and Pressure
Description
Applications
Technical characteristics
The SP-RK95-02 solar radiation shield protects temperature, humidity and pressure sensors from solar radiation and precipitation.
It is based on the combination of geometry, material and ventilation suitable for total protection of the sensors.
It reflects sunlight from any direction, preventing direct sunlight and glare. It also protects the sensors from conditions such as strong winds, rain, or snow.
The solar radiation-resistant casing has ventilation that makes the temperature values it collects reliable.
It can be installed in places with extreme atmospheric conditions because it is made with materials of high reflectivity and low thermal conductivity.
- Sensor protection
- Construction of stainless steel and engineering plastics
- Correct installation:
- Good air circulation around the shield
- Far from metallic products and masses like asphalt or solar panels
- Keep away from places with strong winds, electrical machinery, or motors.
- Far from places with water
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES TÉCNICAS |
|---|---|
| Número de discos | A: 10, B: 7 |
| Color | Blanco |
| Diámetro interior (mm) | A: 30, B: 22 |
| Diámetro exterior (mm) | A: 130, B: 79 |
| Altura interna(mm) | A: 135, B: 80 |
| Material | Plástico |
| Accesorios instalación | Soporte de acero inoxidable |
| Temperatura funcionamiento | -40℃ a +75℃ |
