SP WRCP Weather Radar
Weather monitoring and data analysis with Smartyplanet

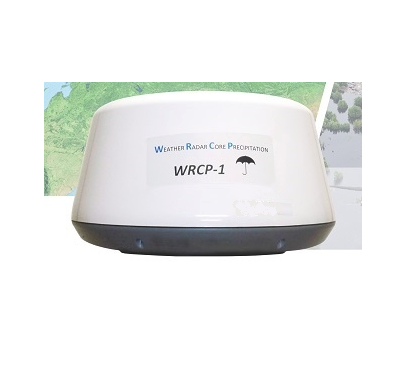

The SP WRCP weather radar is the ideal solution for real-time monitoring of weather phenomena.
Its small size structure makes it an easy-to-install portable or fixed unit.
This equipment can reach between 40 – 50 km.
The WRCP can be safely mounted anywhere without any radiation hazard to the user and is also resistant to all types of weather conditions.
It features solid-state FMCW technology that produces an immediate on-screen image.
Thanks to its full compatibility with the Smartyplanet web platform, captured images are instantly recorded and analyzed.
Category: Weather Radar, Smarty Meteo
Description
Applications
Technical characteristics
The SP WRCP weather radar is the ideal solution for real-time monitoring of weather phenomena.
It can be used for applications in urban areas, sports, forest fires, or disaster zones to provide visibility into the possibility of local storm nuclei forming, etc.
Due to the high processing speed of its antenna, it offers a rapid tracking response of storm cells.
Its small size structure makes it an easy-to-install portable or fixed unit.
This equipment can reach between 40 – 50 km.
The WRCP can be safely mounted anywhere without any radiation hazard to the user and is also resistant to all types of weather conditions.
The 100% solid-state broadband radar technology provides InstaOn™ technology. Its standby time is 16 seconds. Its rapid rotation of 24 to 36 RPM enables detailed precipitation cell tracking information.
Thanks to its full compatibility with the Smartyplanet web platform, captured images are instantly recorded and analyzed.
- Surveillance of agricultural fields
- River flood monitoring, hiking
- Sporting and competitive events
- Surveillance of mobile storm tracking units
- Defense system for tactical UAV units
- Forest fires
- 100% solid-state radar technology
- Short waiting time to be up and running
- Rapid rotation
- Low energy consumption
- Resistant to hostile conditions
- High precision and reliability
- Easy installation
- Compatible con Smartyplanet
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Conformidad | CE, FCC (ID: RAY3G4G), IC: 4697A-3G4G |
| Ambiental | IEC60945: 2002 Temperatura de funcionamiento: -25° a +55°C (-13° a +130°F) Humedad relativa: +35° C (95° F), 95% RH Impermeable: IPX6 Velocidad relativa del viento: 51 m/s |
| Consumo de energía (con cable de 10m) | Operativo: 20W a 21 W a 13.8Vdc Espera: 2.9W a 13.8Vdc ~ 170mA |
| Entrada de CC (al final del cable de radar) | 9 VDC a 31.2Vdc (12/24 Voltios). Mínima entrada de voltaje 10.75Vdc |
| Fuente transmisor | Sin magnetrón – (Transistores) |
| Dimensiones exteriores | Altura 280 mm x Diámetro 489 mm |
| Peso del escáner (sin cable) | 7.4 kg |
| ANTENA DEL RADAR | |
| Rango del radar | 50 m a 66 km con 18 ajustes del rango |
| Rotación | 24/36/48 rpm +/-10% |
| Frecuencia del transmisor | X-banda – 9.3 a 9.4 Ghz |
| Tiempo de precalentamiento | instant On™, Sin tiempo de precalentamiento |
| Plano de polarización | Polarización horizontal |
| Potencia de salida máxima del transmisor | 165 mW (nominal) |
| Barrido de frecuencia de repetición | 200 – 540 Hz (modo dependiente) |
| Tiempo de barrido | 1.3 ms+/- 10% |
| Ancho de banda de barrido | 75 MHz max |
| Ancho de haz horizontal | 5.2°+/-10% (-3 dB ancho) |
| Objetivo de control de separación | OFF: 5.2°+/-10% (-3 dB ancho) Bajo: ~4.4°+/-10% (-3 dB ancho) Medio: ~3.2°+/-10% (-3 dB ancho) Alto: ~2.6°+/-10% (-3 dB ancho) |
| Ancho de haz vertical | 25°+/-20% (-3 dB ancho) |
| Nivel de lóbulo lateral | Inferior -18 dB (interior ±10°); Por debajo de -24 dB (±10°) |
| Ruido de funcionamiento | Menos de 6 dB |
| CABLEADO/MONTAJE | |
| Protocolo de comunicaciones | Alta velocidad de Ethernet |
| Conector R10 | NMEA2000 / SimNet con RI10 caja de interfaz |
| Longitud del cable de conexión | Cable de 10 m Cable de B&G 20 m |
| Máxima conexión de longitud del cable | 30 m – disponible con opción |
| Tornillos (4) | M8x30 – 304 acero inoxidable |
