UV radiation sensor
Ultraviolet radiation index measurement and data analysis with Smartyplanet
The SPR200-07 UV radiation sensor is a precision instrument used for measuring the UV radiation index present in the atmosphere.
The data collected by the UV radiation sensor may be of interest to people. It can be very useful in raising public awareness of the adverse effects of exposure to this radiation.

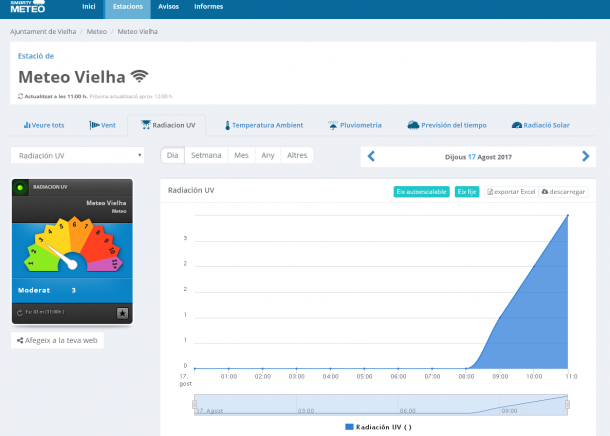

Its compatibility with the Smartyplanet web platform allows for instant analysis of the data it records.
This sensor is designed to be applied in different fields.
Category: Solar radiation, Solar radiation, Smarty Meteo, Smarty Agro, Traffic
Description
Applications
Technical characteristics
The SPR200-07 UV radiation sensor is a precision instrument used for measuring the UV radiation index present in the atmosphere.
Its compatibility with the Smartyplanet web platform allows for instant analysis of the data it records.
One of its most important applications is raising awareness of the risks associated with high exposure to UV radiation. Therefore, this sensor is the ideal solution for informing and educating the public about the negative health effects of this type of radiation.
The UV radiation sensor also has applications in the construction, environmental, and other fields.
The sensor has no moving parts. It can be installed at any height and requires no maintenance.
It has a long lifespan because it consumes little energy.
- Tourism
- Monitoring the degradation of construction materials
- Environmental monitoring
- Medical research
- Animal breeding industry
- Aluminum construction
- Lightweight
- No moving parts
- Maintenance-free
- Works at any height
- High sensitivity
- Low energy consumption
- Long service life
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Longitud onda | 240～400nm |
| Alimentación | 5V, 12-24VDC |
| Rango | 0-200W/m2 |
| Salida | 0-20mV, 0-5V, 4-20mA, RS485 |
| No linealidad | <±3% |
| Tiempo respuesta | ≤1s |
| Estabilidad | ±2%/año |
| Corrección coseno | ≤±4% (ángulo elevación solar=30°) |
| Efecto temperatura | ±0,08%/ºC |
| Temperatura funcionamiento | -40℃ a +85℃ |
| Peso | Sensor: 220g, Módulo transmisión: 200g |
| Material | Aleación aluminio |
| Clase de protección | IP65 |
| Condiciones almacenamiento | 10℃-60℃@20%-90%RH |
