Temperature, pressure and humidity sensor
Temperature, pressure, and humidity sensor. Data analysis with Smartyplanet.
The SPR330-01 temperature, pressure and humidity sensor is an ideal solution for measuring various atmospheric parameters.
This sensor measures atmospheric temperature, barometric pressure, and relative humidity.
The sensors are positioned to withstand adverse weather conditions. They can also be equipped with protective panels to shield them from solar radiation and rain.
The measurements it collects are highly accurate and reliable.
It is fully compatible with the Smartyplanet web platform. The recorded data can be easily analyzed.
This temperature, pressure, and humidity sensor is easy to install and requires minimal maintenance.
Category: Smarty Weather, Temperature, Humidity and Pressure
Description
Applications
Technical characteristics

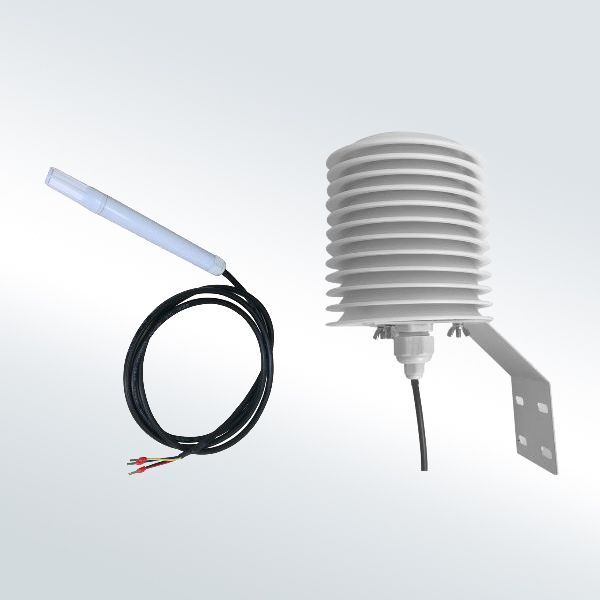

The SPR330-01 temperature, pressure and humidity sensor is an ideal solution for measuring various atmospheric parameters.
It can measure atmospheric temperature, barometric pressure, and relative humidity.
Its installation is simple and can be carried out under any type of weather conditions since the sensors are positioned so that these do not affect them.
Even so, it is possible to add protective panels against solar radiation and rain.
The data it collects is accurate and reliable.
The data is recorded and analyzed by the Smartyplanet web platform since it is fully compatible with the sensor.
The sensor has low power consumption and provides fast responses. These factors combined result in a long lifespan.
- Environmental monitoring
- Forest control
- Agriculture
- Cattle raising
- Eco-friendly houses
- Storage locations
- ABS construction
- High sensitivity
- Fast response time
- Low consumption
- Long service life
- Good output stability
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES TÉCNICAS | ||
|---|---|---|---|
| Temperatura | Humedad | Presión | |
| Rango | -40 a 60℃ | 0-100%RH | 0-110kPa (0-1100mbar) |
| Resolución | 0.1℃ | 0.5%RH | 0.1mbar |
| Exactitud | ±0.5℃ | ±3%RH | ±1mbar |
| Alimentación | 12-24VDC | ||
| Señal salida | 4-20mA, 0-10V, RS485 MODBUS(RTU) | ||
| Consumo intensidad | <20mA | ||
| Temperatura funcionamiento | -40℃ a +80℃ | ||
| Clase de protección | IP65 | ||
| Almacenamiento | 10-60℃@20%-90%RH | ||
| Peso | 120g | ||
| Material sonda | ABS | ||
| Protección radiación | RK95-01, 11 placas, M25*1.5 | ||
