Liquid level sensor (35m)
Liquid control and data analysis with Smartyplanet

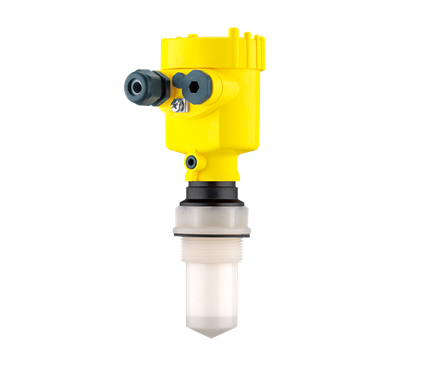

The SP61 liquid level sensor is a sensor for continuous liquid level measurement under any type of ambient conditions.
The sensor obtains highly accurate data regardless of the conditions to which it is subjected.
The data collected by this liquid level sensor is instantly recorded and analyzed by the Smartyplanet web platform, as it is fully compatible.
The encapsulated antenna system it contains guarantees continuous operation without maintenance.
Category: Water Level, Water Level, Smarty River, Smarty Water
Description
Applications
Technical characteristics
The SP61 liquid level sensor is a sensor for continuous liquid level measurement under any type of ambient conditions.
The sensor's operation is based on the emission of extremely short microwave pulses from the antenna system onto the product to be measured. These are reflected by the product's surface and captured again by the antenna system.
The time from transmission to reception of the signal is proportional to the level in the tank.
A special time extension process enables precise and reliable measurement of short signal times.
The data collected by this liquid level sensor is instantly recorded and analyzed by the Smartyplanet web platform, as it is fully compatible.
The encapsulated antenna system it contains guarantees continuous operation without maintenance.
- Hydrological control
- Robust design
- Resistant to hostile conditions
- Integrable into wireless sensor networks
- Compatible con Smartyplanet
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Material | PVDF o PP |
| Clase de protección | IP66/IP67 |
| Rango medida | 35m |
| Error de medición | ±2mm |
| Conexión a proceso | Rosca G1½, 1½ NPT; soporte de montaje; bridas sueltas a partir de DN 80. 3″, bridas de adaptación a partir de DN 100, 4″ |
| Presión de proceso | -1 a +3 bar/-100 a +300 kPa |
| Temperatura de proceso | -40 a +80 °C |
| Temperatura ambiente, de almacenaje y de transporte | -40 a +70 °C |
| Tensión de trabajo | Bajo voltaje: 9,6 a 48 VDC, 20 a 42 VAC, 50/60 Hz Tensión de red: 90 a 253 VAC, 50/60 Hz |
| Cualificación | SIL Opcional hasta SIL2 |
