Flow meter
Flow radar and data analysis with Smartyplanet

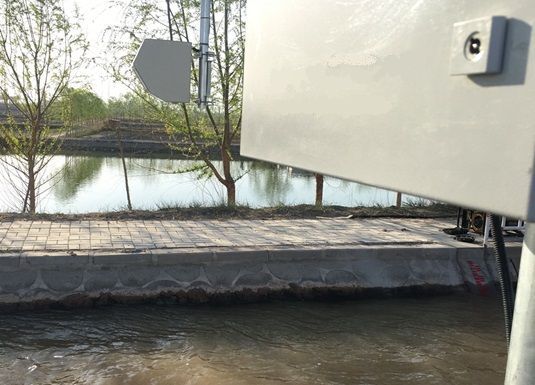

The SPR300WQX flow radar is the ideal solution for non-contact surface flow measurement, velocity, level and water flow rate.
The sensor is used to monitor the flow rate of open channels such as rivers, irrigation canals or sewer systems, and for monitoring and control of hydroelectric plants and wastewater treatment plants.
Non-contact radar technology allows for quick and easy installation of the sensor above the water's surface. It requires minimal maintenance.
The data recorded by this radar can be instantly recorded and analyzed thanks to its full compatibility with the SmartyPlanet web platform.
Category: Free surface flow, Water level, Smarty River, Smarty Water
Description
Applications
Technical characteristics
The SPR300WQX flow radar is the ideal solution for non-contact surface flow measurement, velocity, level and water flow rate.
The sensor is used to monitor the flow rate of open channels such as rivers, irrigation canals or sewer systems, and for the control of hydroelectric plants and wastewater treatment plants.
The flow meter is also suitable for various mass flow measurement applications in mining processing plants, industrial facilities, and, due to its operation without moving parts and robust mechanical design, is ideal for measuring flammable fluids and harsh chemical applications.
Non-contact radar technology allows for quick and easy installation of the sensor above the water's surface. It requires minimal maintenance.
The data recorded by this radar can be instantly recorded and analyzed thanks to its full compatibility with the SmartyPlanet web platform.
- Hydrological control
- Non-contact measurement of surface flow velocity
- Non-contact flow measurement.
- Bidirectional flow measurement.
- Measurement speed up to 15 m/s.
- High precision.
- Up to 20m water level measurement range.
- Irresistible to fog, precipitation, or temperature.
- Easy installation.
- Maintenance-free.
- RS232 / RS485 Interface
- Compact design.
- Low energy consumption.
- Compatible con Smartyplanet.
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Tecnología | Radar Doppler |
| Impulsos | |
| Rango medida velocidad | 0,1 – 15 m/s |
| Exactitud medida velocidad | ±0.02 m/s |
| Resolución medida velocidad | 1 mm |
| Rango medida nivel | 20 m |
| Exactitud medida nivel | ±3 mm |
| Resolución medida nivel | 1 mm |
| Corriente funcionamiento | 150mA at 12V DC |
| Resistencia vibración | con 4g y 5g..100Hz |
| Protección | IP67 |
| Temperatura funcionamiento | -40 – 80ºC |
| Interfaz | RS232/485 |
| Modo medición | Continuo |
| Compatibilidad electromagnética | CE, FCC |
| Dimensiones | 325*280*135 |
| Peso | 7 kg |
