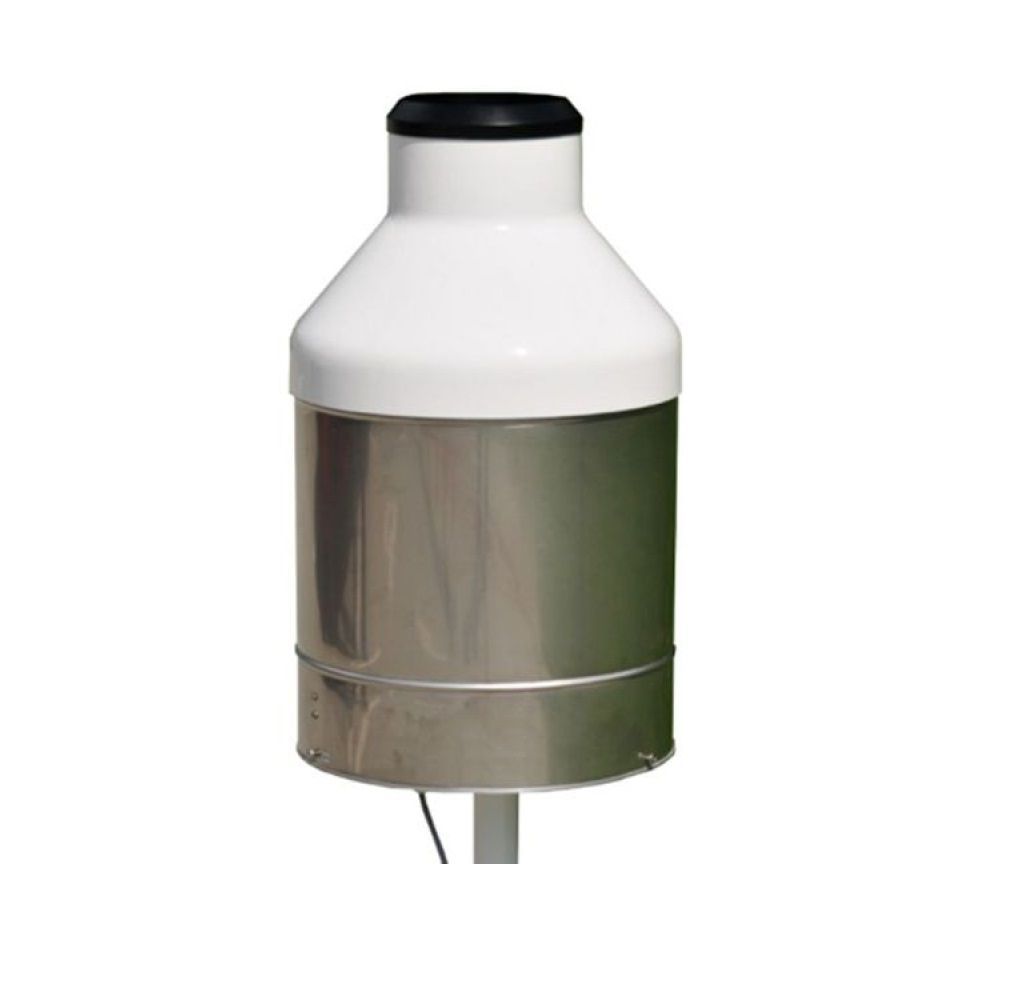

Weighing rain gauge
Measuring the weight of precipitation and analyzing data with Smartyplanet
The SPTS214 rain gauge is the ideal solution for measuring all types of precipitation in windy and snowy conditions.
Simple mechanical construction combined with sophisticated firmware can guarantee perfect operation.
The rain gauge has a built-in heating system that guarantees the accuracy of the data it collects at all times.
This data is recorded and analyzed by the Smartyplanet web platform thanks to its full compatibility.
Rain gauge maintenance is minimal and installation is simple.
Category: Rain, Rain, Snow, Smarty Meteo, Smarty Agro, Smarty River, Smarty Snow, Traffic, Liquid Precipitation
Description
Applications
Technical characteristics
The SPTS214 weighing rain gauge is the ideal solution for measuring all types of precipitation in adverse wind and snow conditions.
The parameters from which it collects data are:
- Solid and liquid precipitation.
- Rainfall intensity in one minute.
- Total amount of precipitation.
- Duration of precipitation.
Simple mechanical construction combined with sophisticated firmware can guarantee perfect operation.
The rain gauge has a built-in heating system that guarantees the accuracy of the data it collects at all times.
This data is recorded and analyzed by the Smartyplanet web platform thanks to its full compatibility.
The sensor requires minimal maintenance and is easy to install.
- Weather monitoring.
- Environmental disaster monitoring.
- Hydrological monitoring.
- Water supply systems.
- Several measures.
- Elimination of wind and particle vibration.
- RS485 output, SDI-12.
- Easy maintenance.
- On-site precision assessment and control.
- Local and remote diagnostics.
- Self-diagnosis and self-control.
- Heated.
- Option to measure more parameters: air temperature, rain detector, wind speed.
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| GENERALES | |
| Dimensiones | Ø360×540mm |
| Peso | 8.0kg |
| Temperatura de funcionamiento | -40 a +70°C |
| Humedad funcionamiento | 0 a 100% |
| Clase de protección | IP65 |
| Tensión de alimentación | 5 a 30 VDC / 4mA max |
| Suministro de calefacción | 10 a 30 VDC / 0.83 a 2.5 A |
| Consumo máximo | Umax=30V, Imax=300mA |
| Señal de salida | RS-485, SDI-12 |
| MEDIDAS | |
| Área orificio | 200 cm2 |
| Rango de precipitaciones | 750 mm |
| Exactitud | 0,1% |
| Intensidad de lluvia máxima | 120 mm/min |
| Resolución | 0,001 mm |
| Elementos de medida | Puente de tensión |
| Medida temperatura del aire | -40 a +70ºC |
| Estimación velocidad del viento | Opcional |
| Corrección viento | Sí |
| Protección del viento | Sí |
