Dual lens camera
Remote monitoring and image analysis using Smartyplanet

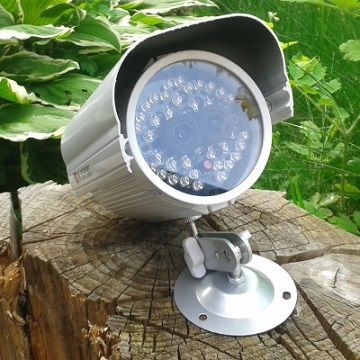

The SPCAM-D1-3M dual lens camera is the ideal solution for remote monitoring of parameters that need visible inspection.
It is a weatherproof, low-power camera.
This camera is fully compatible with the Smartyplanet web platform, so the data it records can be analyzed instantly. The images it captures are saved in JPG format.
The SPCAM-D1-3M has an image sensor and lens for taking color pictures during the day and includes an IR lens for taking black and white photographs.
Category: Solar radiation, Solar radiation, Smarty Meteo, Smarty Agro, Traffic
Description
Applications
Technical characteristics
The SPCAM-D1-3M dual lens camera is the ideal solution for remote monitoring of parameters that need visible inspection.
It is a weatherproof, low-power camera.
This camera is totally
It is compatible with the Smartyplanet web platform, so the data it records can be analyzed instantly. The images it captures are saved in JPG format.
The SPCAM-D1-3M has an image sensor and lens for taking color pictures during the day and includes an IR lens for taking black and white photographs.
It has a 45º viewing angle and a maximum night vision of 20m.
This camera is recommended for taking pictures at close range. The maximum resolution is 1280 x 1024 pixels.
- Supervision of areas that require visual inspection.
- River control.
- Dual CMOS image sensor.
- Several possible solutions.
- JPG compression of the image.
- IR and color lenses.
- 45º of vision.
- Maximum night vision of 20m.
- Automatic white balance.
- RS232 interface.
Especificaciones Técnicas de la Cámara
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| Sensor | CMOS |
| Compresión imagen | JPG |
| Resolución imagen | 160×128 px, 320×240 px, 640×480 px, 1280×1024 px |
| Lentes | Color, IR |
| Ángulo visión | 45º |
| Visión nocturna | 20m |
| Balance de blancos | Automático |
| Interfaz | RS232 |
| Tensión de alimentación | +5 VDC máximo |
| Cable | 1m |
| Peso | 1,5 kg |
| Dimensiones | 73x120x165 mm |
| Temperatura de funcionamiento | -20 a +85ºC |
| Clase de protección | IP66 |
