Road surface sensor
Road monitoring and data analysis with Smartyplanet

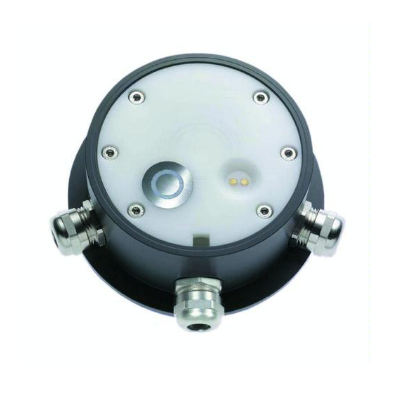

The SPMETEOS 201 road surface sensor is the ideal solution for measuring various road surface parameters.
The parameters from which it obtains data are: temperatures, conductivity, salinity, freezing temperature, road conditions and water height.
Its design allows for quick maintenance or calibration.
The data collected by this compact sensor is accurate and reliable.
Thanks to its full compatibility with the Smartyplanet web platform, the data it records is analyzed instantly.
Category: Road, Traffic
Description
Applications
Technical characteristics
The SPMETEOS 201 road surface sensor is the ideal solution for measuring various road surface parameters.
The parameters from which it obtains data are:
- Temperatures
- Conductivity
- Salinity
- Freezing temperatures
- Road conditions
- Water height
This sensor is designed so that the sensor can be easily separated from the electronics. This allows for quick maintenance or calibration.
The data collected by this compact sensor is accurate and reliable.
Thanks to its full compatibility with the Smartyplanet web platform, the data it records is analyzed instantly.
Installation is simple.
- Meteorological control
- Traffic
Especificaciones Técnicas
PARÁMETROS | ESPECIFICACIONES TÉCNICAS |
---|---|
GENERALES | |
Interfaz | RS485 |
Tensión de alimentación | 9-24 VDC, nominal: 24 V |
Dimensiones | Ø100 (en superficie calzada) x 53 mm (altura) |
Condiciones detectadas | Seco/húmedo/helado o nevado/húmedo a helado |
Clase de protección | IP66 |
Temperatura almacenamiento | -40 a +80ºC |
Temperatura funcionamiento | -40 a +80ºC |
Rango funcionamiento húmedo | 0-100% HR |
Conector | Cable desde 4 x 0,5 mm2 hasta 4 x 0,75 mm2 |
Peso | 800 g |
Accesorios | Cable conexión de 10m |
MEDICIONES SUPERFICIE CALZADA | |
Principio | NTC |
Rango mediciones | -40ºC a +80ºC |
Exactitud | ±0,1ºC (-20 a +20ºC), otro: ±0 |
Resolución | 0,1 |
PUNTO DE CONGELACIÓN | |
Rango mediciones | -30 a 0ºC |
Exactitud | ±0,5ºC (0 a -2,5ºC) |
Resolución | 0,1 |
ALTURA AGUA | |
Rango de mediciones | 0,6mm a 4mm |
Exactitud | ±(0,1mm + 20% medida) |
Resolución | 0,01mm |
CALZADA RESBALADIZA | |
Rango de mediciones | 0 a 1 |
HIELO | |
Rango de mediciones | 0 a 100% |
