Modem Inmarsat
Good connectivity and data analysis with Smartyplanet

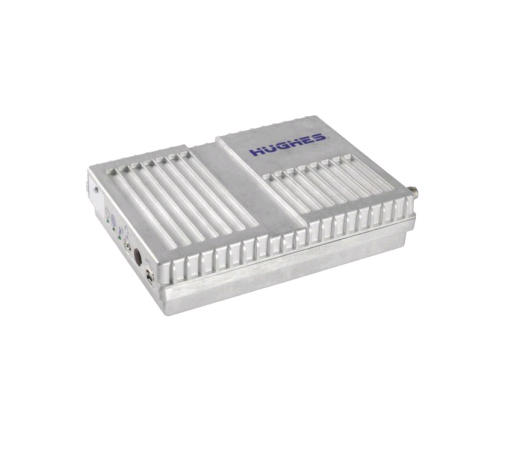

The Inmarsat SP9502 modem is a solution for reliable connectivity over Inmarsat's global broadband network.
It has applications in sectors such as environmental control, Smart Grid, pipeline monitoring, compressor monitoring, etc.
The Inmarsat modem's low power consumption allows it to provide IP connectivity to sites that are beyond the reach of the electrical grid.
The modem is fully compatible with Smartyplanet products, thus contributing favorably to data acquisition.
Category: Communications
Description
Applications
Technical characteristics
The Inmarsat SP9502 modem is a solution for reliable connectivity over Inmarsat's global broadband network.
It has applications in sectors such as environmental control, Smart Grid, pipeline monitoring, compressor monitoring, well automation, etc.
The Inmarsat modem's low power consumption allows it to provide IP connectivity to sites that are beyond the reach of the electrical grid.
The modem includes 10 meters of RF cable, allowing it to be placed far from the transceiver in complex installations. This secures the SIM card within an enclosure for protection.
It is fully compatible with Smartyplanet products, thus contributing favorably to data collection.
- Environmental control
- Smart Grid (electrical power distribution network)
- Pipeline supervision
- Compressor monitoring
- Well automation
- Video surveillance
- Out-of-band management of primary communications
- No connection load with BGAN, M2M
- Minimum CDR 1kbyte
- Free software updates
- Remote control via SMS, including configuration, debugging, and access to the web interface
- Built-in security options
- Low power consumption
- Easy installation
- The ODU can be installed on a pole
- Integrated GPS receiver
Especificaciones Técnicas
| PARÁMETROS | ESPECIFICACIONES |
|---|---|
| MECÁNICOS | |
| Dimensiones IDU | 150 x 200 x 45 mm |
| Peso IDU | < 1,5 g |
| Dimensiones ODU | 385 x 385 x 33 mm |
| Peso ODU | < 1,9 g |
| ELÉCTRICOS | |
| Voltaje de entrada | +12 VDC / +24 VDC |
| Transmisión | < 20W |
| Transmisión Narrow Beam | 3 W |
| Inactivo (Regional Beam) | < 1W |
| Off (wake on packet) | < 10mW (@ 12VDC) < 30mW (@ 24VDC) |
| Off ( GPIO control) | < 3 mW (@ 12VDC) 0 |
| INTERFAZ RF | |
| Frecuencia de transmisión | De 1626.5 MHz a 1675 MHz |
| Frecuencia de recepción | De 1518 MHz a 1559 MHz |
| Frecuencia GPS | De 1574.42 MHz a 1576.42 MHz |
| INTERFACES | |
| Conexión Ethernet | RJ45 |
| Conexión a PC para configuración | USB – Tipo B |
| Equipo externo NMEA 0183 | RS232 |
| AMBIENTALES | |
| Rango de temperatura operativo | -40 a +75ºC |
| Humedad | 95% RH a +40ºC |
| Temperatura de almacenamiento | -55 a +75ºC |
| IDU | IP40 |
| ODU | IP65 |
